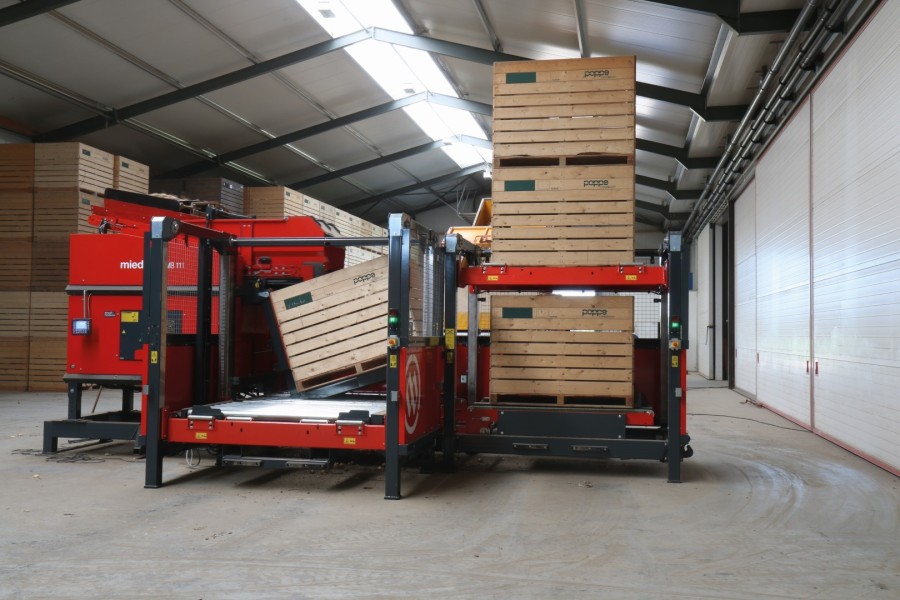

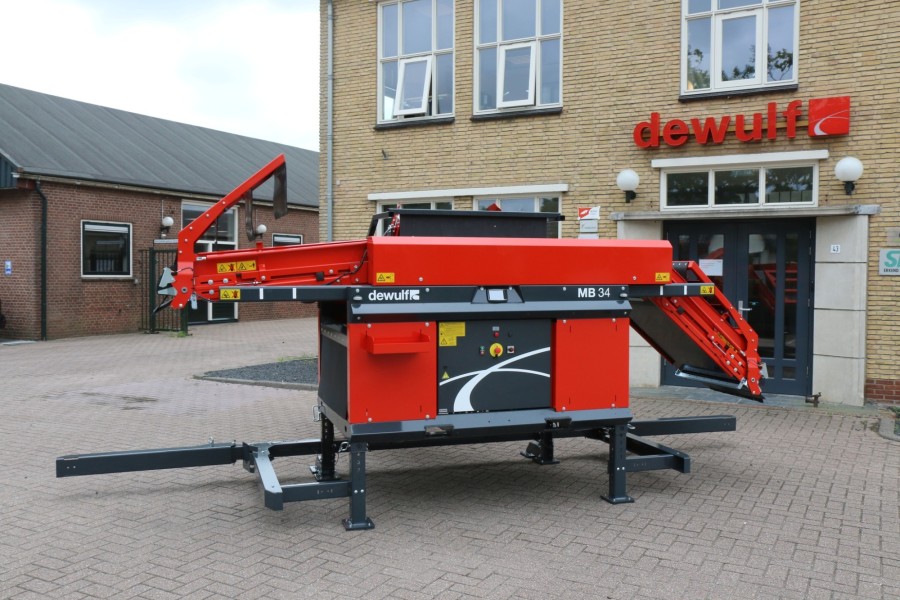

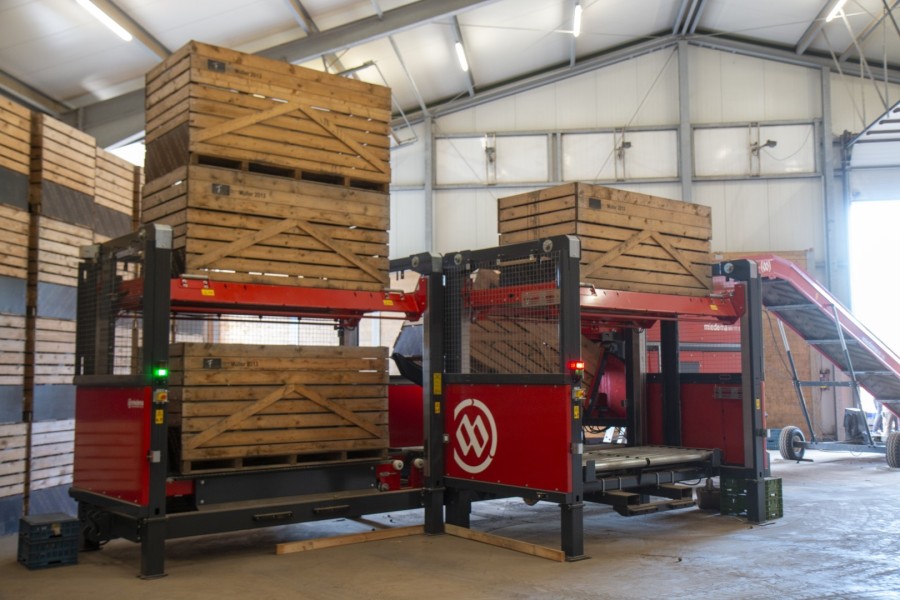

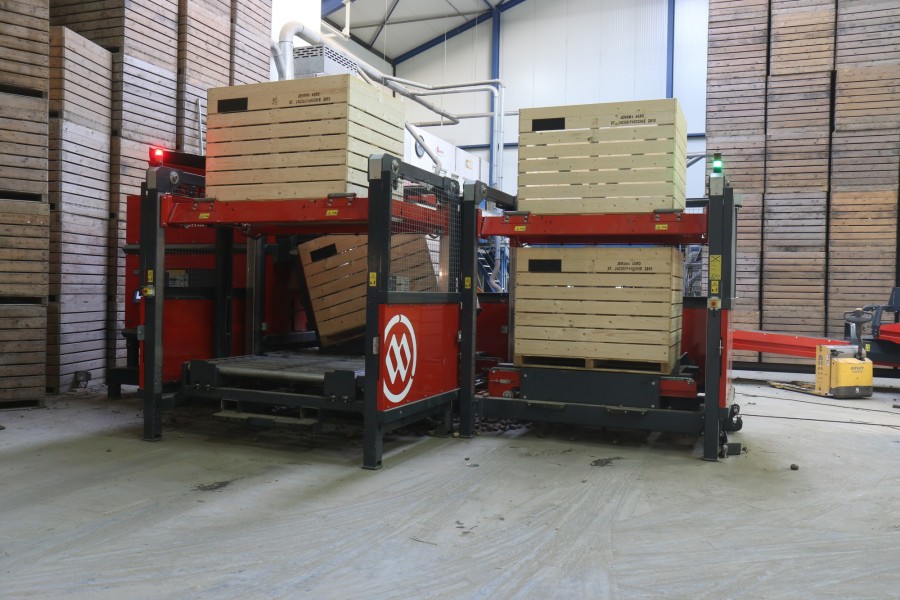

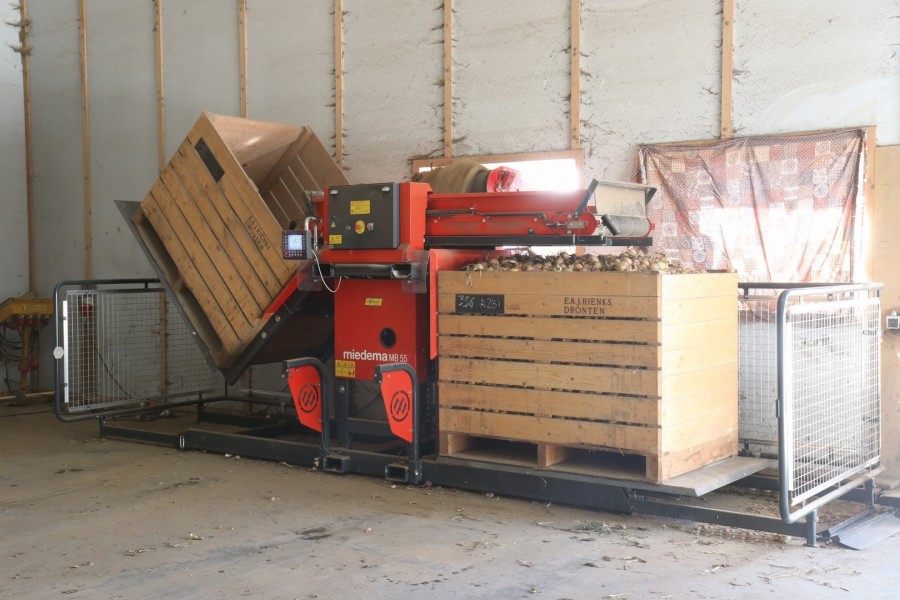

Miedema MB box fillers


Integration of all hydraulic and electric components within the main frame

An active braking system with rubber flaps on the sloping parts of the filling belt to slow down product movement

Robust box stops with integrated box detection sensors

Pre-programmed settings for various box sizes

An easy-to-understand display with clear icons and symbols that transcends language barriers

Price list

The MB series is a high-capacity range of automatic box filler designed to ensure gentle product filling into boxes. Its 80 cm wide conveyor tilts to reduce drop heights and moves from left to right, ensuring precise layering in the box. Sensitive product sensors minimise drop heights, and when full boxes are swapped with empty ones in a timely manner, the machine continues to fill boxes automatically and without interruption. The frame's design allows for fitting various box sizes with this box filler. Operating the box filler is made effortless and quick with the clear HMI display, featuring intuitive icons that indicate the machine's functions and box status.

Specifications

	MB 34	MB 55	MB 111
Capacity (boxes/hour)	40 – 60	45 – 65	80 – 100
Total Machine Length (mm)	4.500	5.500	8.000
Box Width min. – max. (mm)	1.400 – 2.600	910 – 1.800	1.400 – 1.850
Box Depth min. – max. (mm)	800 – 1.250	800 – 1.200	1.180 – 1.270
Box Height min. – max. (mm)	950 – 1.570	850 – 1.350	950 – 1.300
Control Screen	Touchscreen	HMI Control Screen	HMI Control Screen
