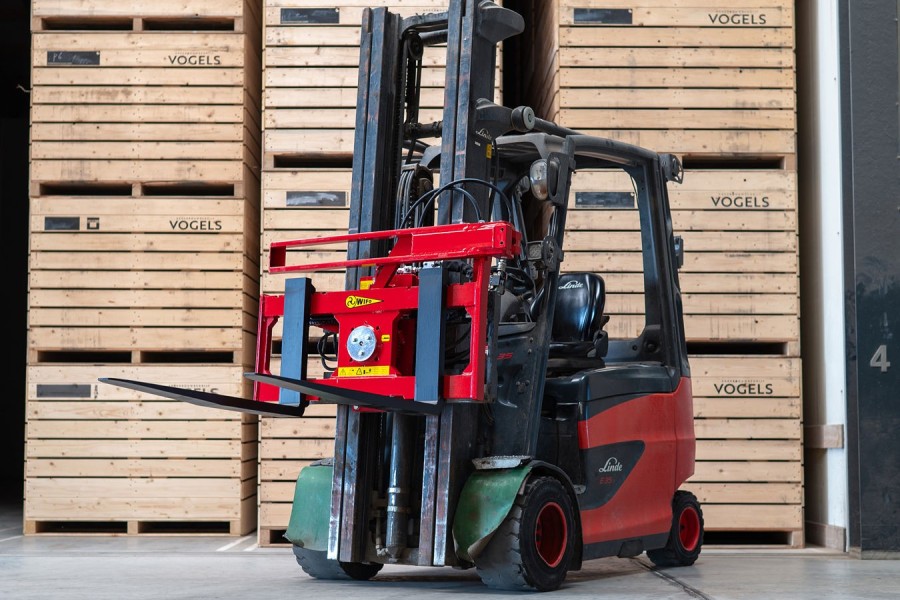

The WIFO Box rotator is designed for picking up, transporting and emptying boxes in a controlled and efficient way. The machine is suitable for a wide range of agricultural products, including potatoes, onions and carrots, and can also be used in processing environments with different types of bulk products.
Thanks to its open construction, the operator has good visibility on the forklift forks during operation. This supports accurate positioning and helps make daily handling work easier and more controlled. The box rotator has a maximum box width of 1800 mm and a standard rotation angle of 180°, with left rotation as standard.

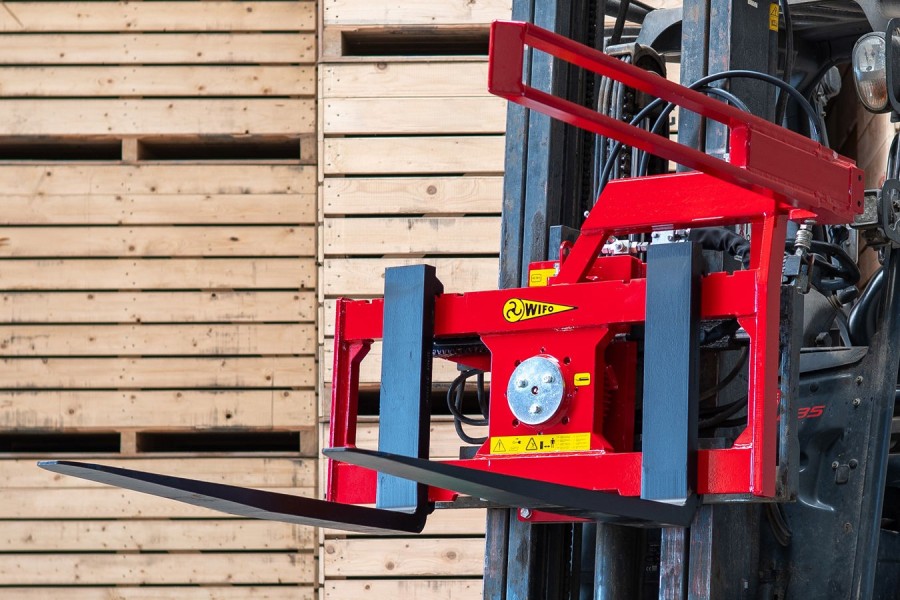

The WIFO Box rotator is equipped with a high quality tipping shaft with sleeve bearing, hoses and quick connectors. The third fork is adjustable in width and can be supplied as a plug in or folding version with gas spring. A durable, replaceable sprocket and gear rack support reliable operation during intensive use.
Several models are available, allowing the box rotator to be matched to the forklift, load capacity and working situation. Optional equipment includes a rotation angle up to 200°, right rotation, detachable top fork, rapid coupling, adjustable ball bearing and attachment to a front loader or reach truck.
| Type | Fork carrier width | Centre of gravity | Weight | Height third fork | Height of fork carrier | Maximum load | Frontal extension length |
|---|---|---|---|---|---|---|---|
| K54A I | 1000 mm | 133 mm | 240 kg | 360 mm | FEM2: 407 mm | 2500 kg | 165 mm |
| K54A O | 1000 mm | 158 mm | 270 kg | 660 mm | FEM2: 407 mm | 2500 kg | 165 mm |
| K54C I | 1200 mm | 134 mm | 315 kg | 460 mm | FEM3: 508 mm | 3500 kg | 185 mm |
| K54C O | 1200 mm | 158 mm | 345 kg | 760 mm | FEM3: 508 mm | 3500 kg | 185 mm |
